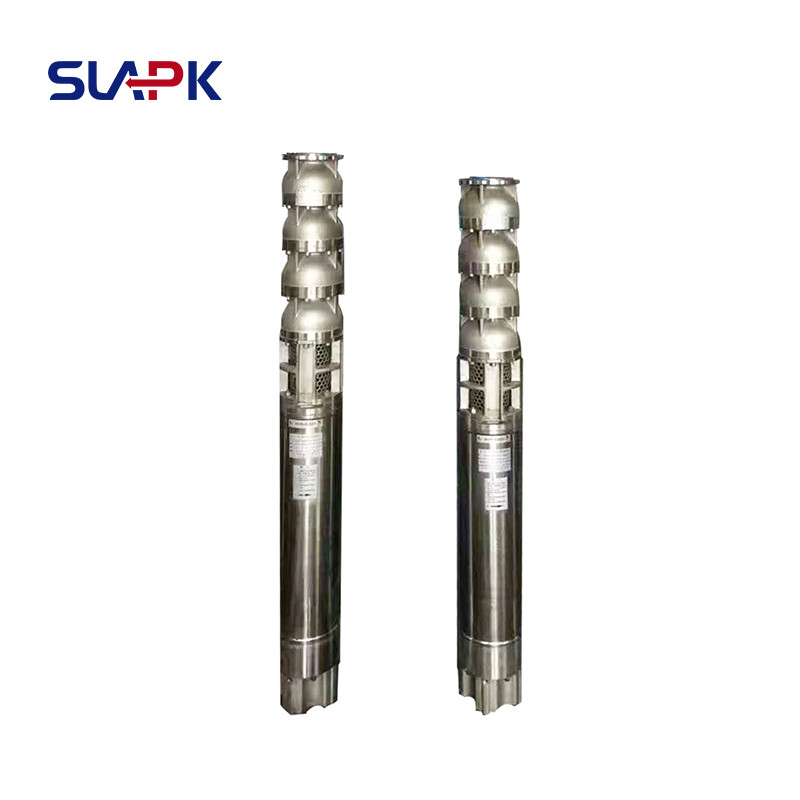

175QJH40-45/2-9.2KW SS316L Submersible Pump – High-Efficiency Deep Well Water Pump Solution

Introduction

The 175QJH40-45/2-9.2KW SS316L submersible pump is a high-performance deep well pump designed for reliable water extraction in demanding environments. With a 3-phase 380V 50Hz power supply and constructed from SS316L stainless steel, this pump offers excellent corrosion resistance, durability, and efficiency.

It is widely used in deep well water supply, industrial water systems, agricultural irrigation, and harsh environments such as seawater or slightly corrosive liquids.

Key Technical Specifications

• Model: 175QJH40-45/2-9.2KW
• Flow Rate: 40 m³/h
• Head: 45 meters
• Power: 9.2 kW
• Voltage: 380V
• Frequency: 50Hz
• Phase: 3 Phase
• Material: SS316L Stainless Steel
• Pump Type: Deep Well Submersible Pump



Premium SS316L Material Advantages

The use of SS316L stainless steel ensures superior performance in corrosive environments:

• Excellent resistance to chloride corrosion and seawater
• High durability in chemical and industrial applications
• Long service life with minimal maintenance
• Ideal for desalination plants, coastal regions, and saline groundwater

High Efficiency & Stable Performance

This deep well submersible pump is engineered for:

• High hydraulic efficiency to reduce energy consumption
• Smooth operation with low vibration and noise
• Reliable performance in continuous-duty applications
• Optimized impeller design for stable water flow

The multi-stage structure (45/2) enhances pressure output, making it suitable for medium-head applications.

Wide Application Range

The 175QJH series pump is suitable for various industries:

1. Deep Well Water Supply

• Drinking water extraction
• Municipal and rural water systems

2. Agricultural Irrigation

• Farmland irrigation
• Sprinkler and drip irrigation systems

3. Industrial Water Transfer

• Cooling water systems
• Process water circulation

4. Corrosive Liquid Handling

• Seawater desalination support systems
• Brackish water pumping

Easy Installation & Low Maintenance

• Fully submersible design eliminates priming issues
• Compact structure for deep well installation
• Durable components reduce maintenance frequency
• Compatible with standard control systems and soft starters

Why Choose Our SS316L Submersible Pump?

• ✔ Factory direct supply with competitive pricing
• ✔ Strict quality control and performance testing
• ✔ Customizable voltage, frequency, and materials
• ✔ Professional technical support and after-sales service

Conclusion

The 175QJH40-45/2-9.2KW SS316L submersible pump is an ideal solution for customers seeking a reliable, corrosion-resistant, and energy-efficient deep well pump. Whether for agricultural, industrial, or marine applications, this pump delivers consistent performance and long-term value.

If you are looking for a high-quality stainless steel submersible pump manufacturer, feel free to contact us for more details, technical support, and customized solutions.
